TPI-6000-VFG-2
- Ask your local dealer for pricing and availability.
- Most products have a minimum 2-year manufacturers warranty.
- Direct shipments available, ask your dealer.

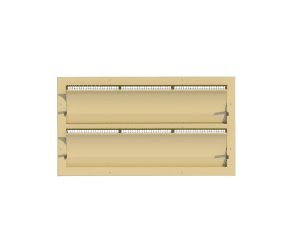

This tunnel unit is built up out of two single 6000-VFG inlets. This version is equipped with a curved inner valve that guides the air upwards during minimum ventilation. After opening further than 35% the air will also flow underneath the inner valve. This unit is controlled by side arms that connect the inner valves.
Capacity in m3/hour at a static pressure of:
Product information:
| Run | 18 cm / 7.1 Inch |
| Force | 26 kg / 255 Newton |
| Number / pallet | 10 (1.65 x 0.95 x 2.40 m) |
| Weight / per inlet | 21.3 kg / 47 Lbs |
| Volume / per box | 2 |
