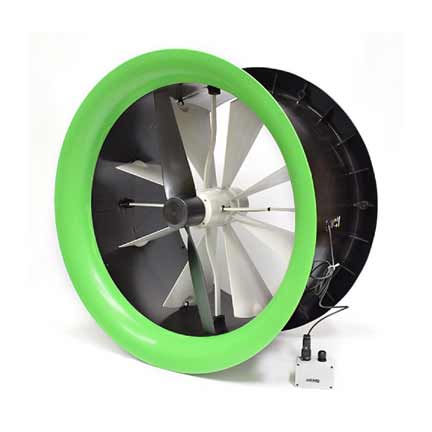

ATM 80 (32 inch ) Throttle Damper / Measure unit

AT(M) Throttle Damper (Measure) Units

  • AT 35 (14 inch) Throttle Damper unit. 34327011
  • AT 40 (16 inch) Throttle Damper unit, 34327012
  • AT 45 (18 inch) Throttle Damper unit, 34327013
  • AT 50 (20 inch) Throttle Damper unit, 34327014
  • AT 56 (22 inch) Throttle Damper unit, 34327015
  • AT 63 (25 inch) Throttle Damper unit, 34327111
  • AT 80 (32 inch) Throttle Damper unit, 34327113
  • AM 35 (14 inch) Measure unit, 34327021
  • AM 45 (18 inch) Measure unit, 34327023
  • AM 50 (20 inch) Measure unit, 34327024
  • AM 56 (22 inch) Measure unit, 34327025
  • AM 63 (25 inch) Measure unit, 34327121
  • AM 80 (32 inch) Measure unit, 34327123
  • ATM 35 (14 inch) Throttle Damper / Measure unit, 34326011
  • ATM 40 (16 inch) Throttle Damper / Measure unit, 34326012
  • ATM 45 (18 inch) Throttle Damper / Measure unit, 34326013
  • ATM 50 (20 inch) Throttle Damper / Measure unit, 34326014
  • ATM 56 (22 inch) Throttle Damper / Measure unit, 34326015
  • ATM 63 (25 inch) Throttle Damper / Measure unit, 34326101
  • ATM 80 (32 inch) Throttle Damper / Measure unit, 34326103



  • Check Mark Ask your local dealer for pricing and availability.
  • Check Mark Most products have a minimum 2-year manufacturers warranty.
  • Check Mark Direct shipments available, ask your dealer.
Category: Tags: , , ,

ATM MEASURING AND CONTROL UNIT
ACCURATE AIR FLOW MEASUREMENT
• Patented airflow transmitter
• Special control valve
• Simple mounting

An important task of a ventilation system in the house is removing excess heat and unwanted gasses like CO2. The degree of ventilation depends on the age of the animals. The precise level of ventilation in the house is continually measured and controlled using the Fancom ATM unit.

Accurate ventilation
The ATM measuring and control unit is a dimensionally stable, chimney module with airflow transmitter and control valve. This module is mounted below the Fancom fan unit. With central exhaust, the ATM unit is mounted between the section and the central duct. The airflow transmitter continuously measures ventilation in the house. The control valve mounted between the airflow transmitter and fan controls the airflow to the right level. Thanks to the way in which measurement and control take place, accurate ventilation is guaranteed providing optimal living conditions for your animals. Accurate ventilation saves energy and reduces heating costs. There is never too much ventilation and no heat is lost.

Simple mounting
The ATM is built into a robust, strong chimney. The module has an ingenious click system enabling the unit to be mounted and removed very easily. A handy and time saving feature during cleaning and periodic maintenance.

Unique features
Some of the unique features of the ATM unit enable the world’s most accurate air flow measurement:
• Minimum tip wobble of the airflow transmitter ensures the entire surface of the chimney is measured.
• The special shape of the patented airflow transmitter ensures the RPM is always proportional to the amount of air. This guarantees an accurate measurement, especially in the, all-important for animals, minimum ventilation zone.
• Direction sensitive RPM feedback ensures wind influences cannot affect the measurement.
• The contra-rotating control valve encourages an unhampered air flow.
• Available in diameters of 35 to 80 cm.
